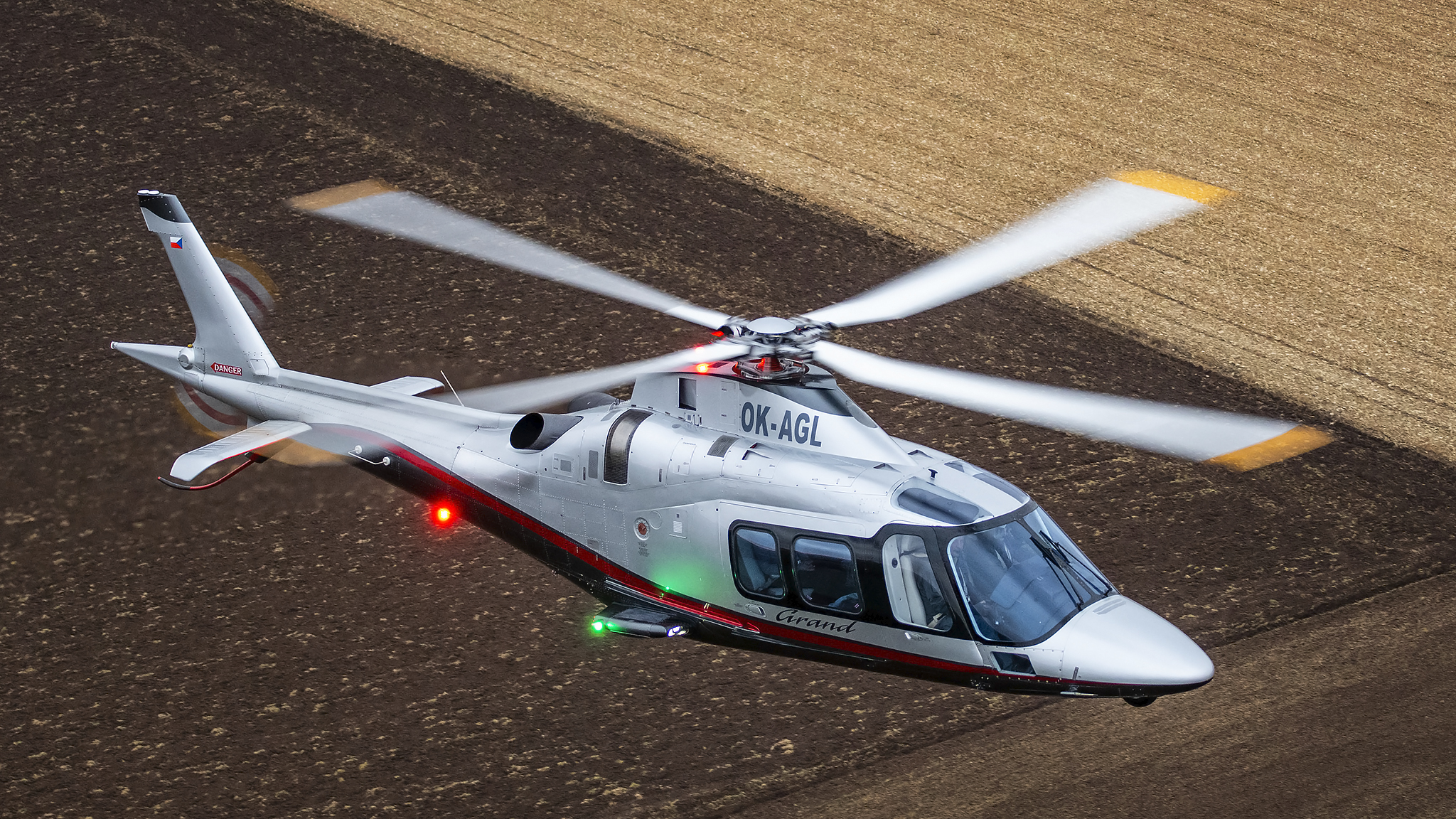

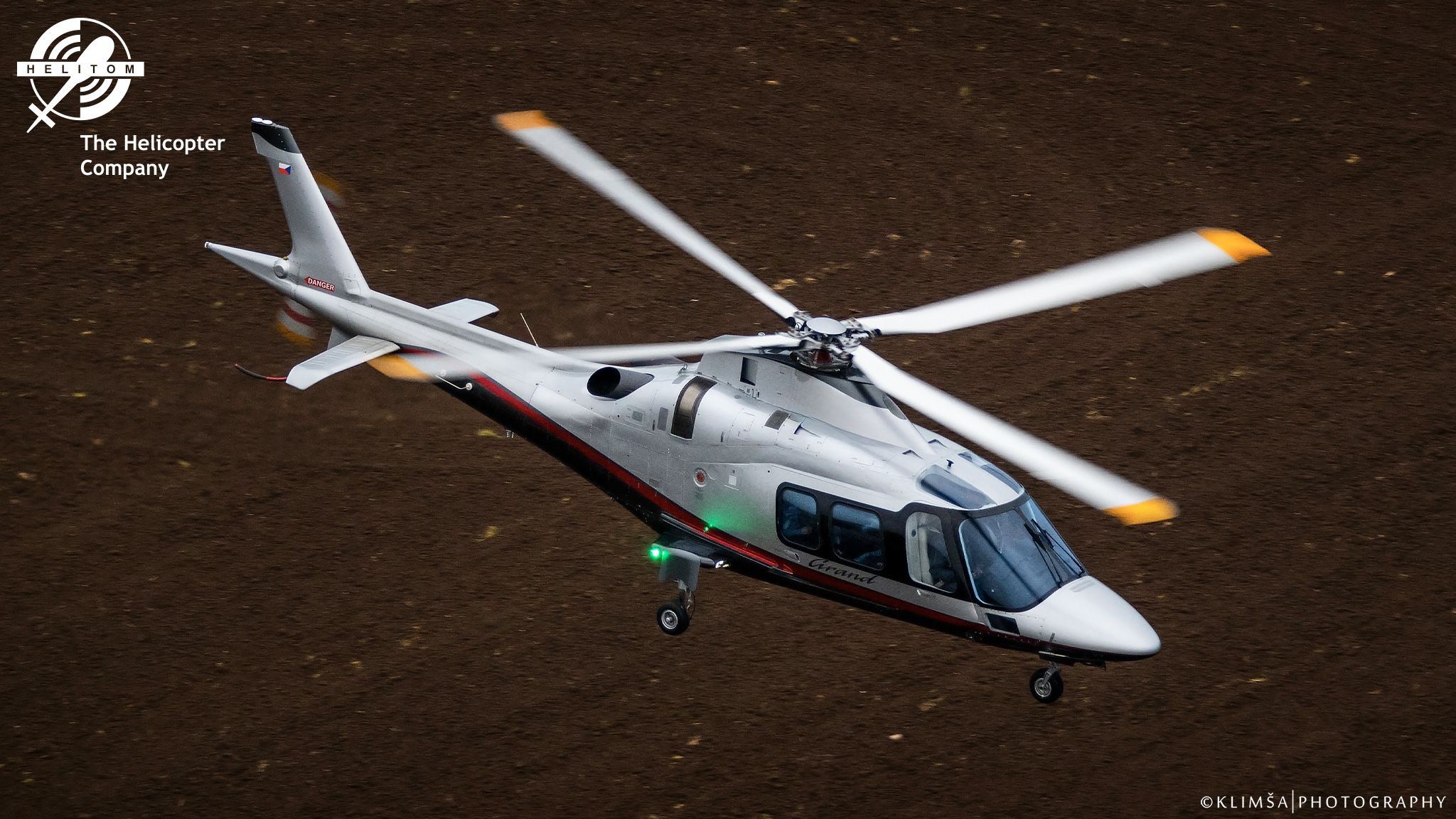

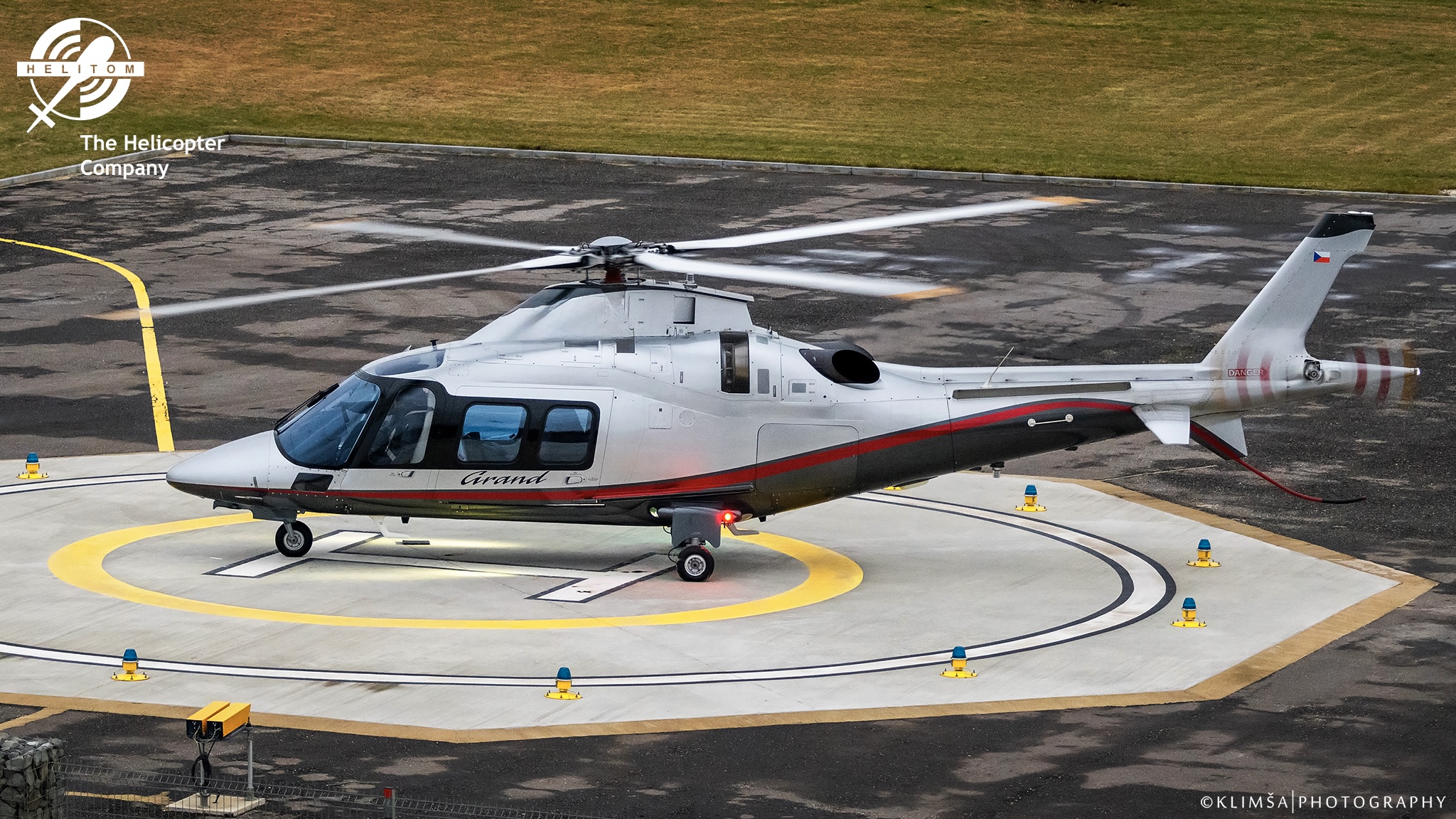

Agusta AW109S
The Agusta AW109S is a light, twin-engine turboshaft multi-purpose helicopter manufactured by the British-Italian company AgustaWestland (now Leonardo Helicopters). It is particularly noted for its performance, speed, and comfort.

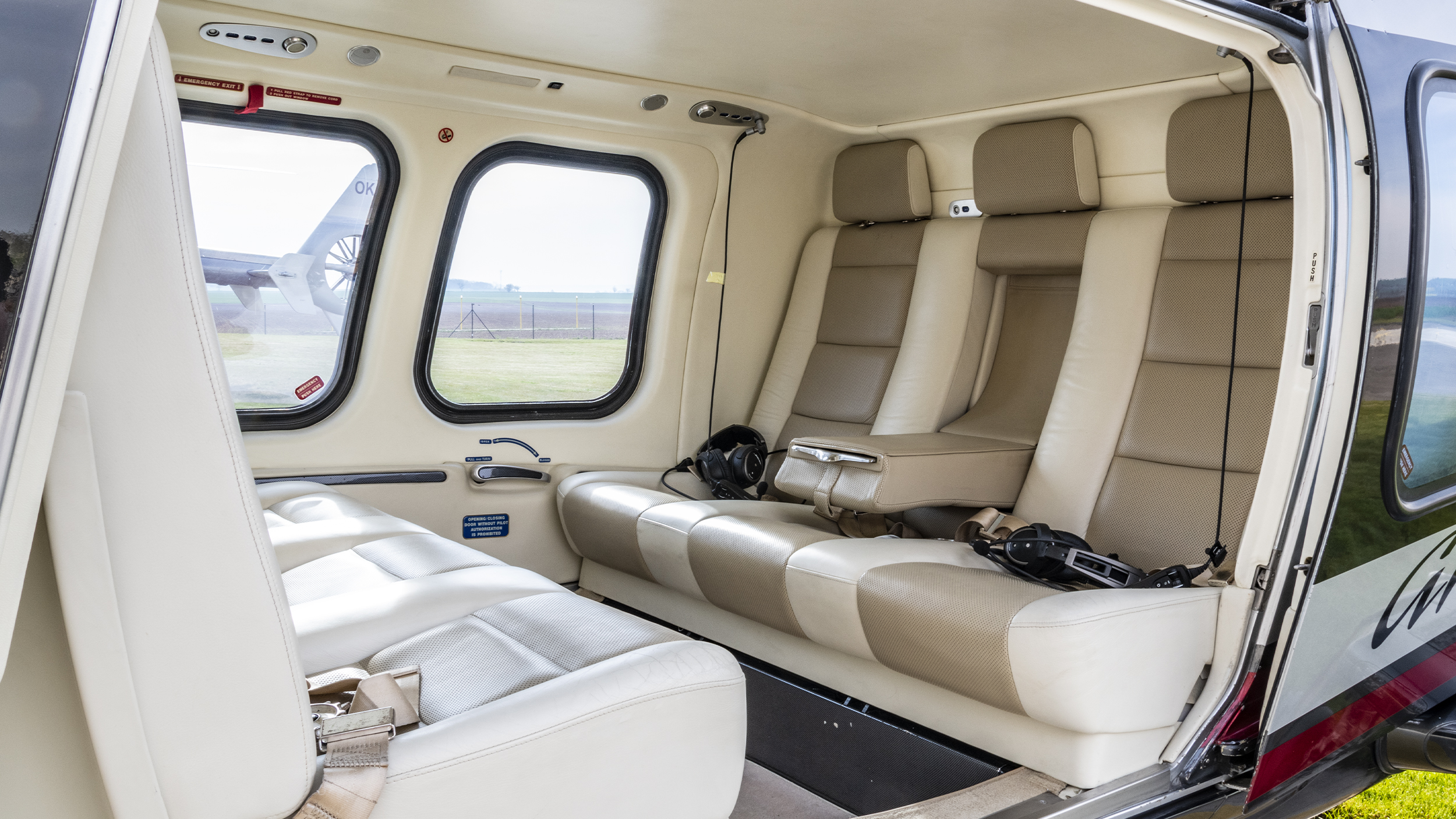

The helicopter is used in various configurations for VIP transport, medical evacuation, search and rescue missions, and is capable of carrying six passengers plus two pilots.
The Agusta AW109S is equipped with two Pratt & Whitney Canada PW207C turboshaft engines and retractable landing gear.
Translated with DeepL.com (free version)
SPECIFICATIONS
-
![]()
Engine: 2x Pratt & Whitney Canada PW207C, turboshaft (735 hp each)
-
![]()
Rotor: four-bladed, counter-rotating, Ø 10.83 m
-
![]()
Tail Rotor: double-bladed
-
![]()
Weight: 2 050 kg
-
![]()
Maximum take-off weight: 3 175 kg
-
![]()
Payload: 1 125 kg
-
![]()
Number of passengers: 1 - 2 pilots + 6 passengers
-
![]()
Top speed: 311 km/h (168 kt)
-
![]()
Cruising speed: 289 km/h (156 kts)
-
![]()
Maximum operating altitude: 3 048 m (10 000 ft)
-
![]()
Climb: 9,3 m/s (1 830 ft/min)
-
![]()
Maximum range: 859 km (463 NM)
